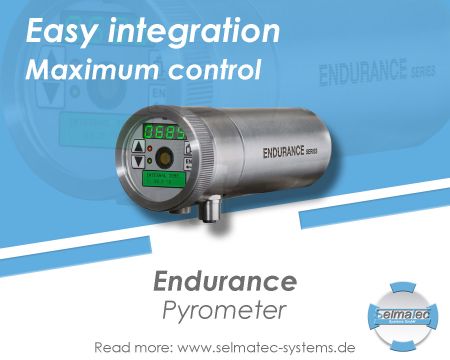

Endurance Pyrometer: Easy integration, maximum control
The Endurance Series pyrometer is a flexible, durable, visual solution, designed to deal with high ambients (of up to 65°C) without cooling.
With its optional camera feature and LED sighting option, you can continuously monitor your process visually and ensure a clean line of sight to the target. The match function takes the guesswork out of setting the emissivity, making it easier for you to accurately measure the temperature of your target. What's more, the Endurance fiber-optic pyrometers allow measurement of targets that would otherwise be inaccessible due to space constraints or pollution.
The device is completed with the Endurance companion software, which you can use to archive temperature data of your process for analysis and sensor setup.
Designed to meet the requirements of Digital Industry, the Endurance Series can communicate the results back to the control system or monitoring stations via a wide range of communication interfaces from rugged analogue isolated input/output, to fast LAN/Ethernet, ProfiNet, etc.
Invest in the Endurance Series today and enjoy the best-in-class 4 year warranty. Make the upgrade and take your temperature measurement to the next level!
Endurance, key information:
- Single color, two color and fiber optic models
- Temperature range: 50 to 3200 °C (122 to 5792 °F)
- Superior optical resolution to 300:1
- Spot sizes down to 0.6mm (0.02 inch)
- Fast response times down to 2 ms
- Easy adjustment with manual variable focus integrated head optics
- Through-the-lens sighting, with optional laser, LED or video aiming function
- Compact, rugged housings with IP65 (NEMA-4) rating
- Ethernet, Profinet and EtherNet/IP options
- Programmable relay output for control
- Simultaneous analog and digital outputs
- CQI-9 4th conform
