Press Hardening: Take advantage of the latest technology and regain your peace of mind
When your monitoring strategy is insufficient, several things will go wrong in your press hardening line: blank positioning becomes harder to register and, therefore, harder to fix accurately, causing significant delays and putting your machinery at risk of breakage if the press closes on a poorly positioned blank.

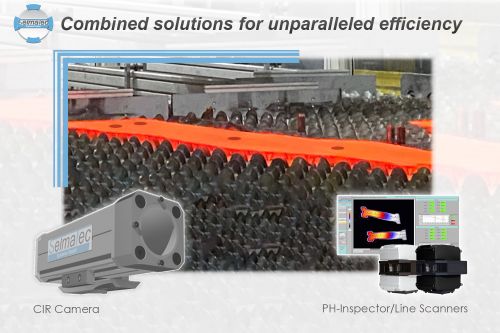

Take advantage of the latest technology and regain your peace of mind: Capable of extreme precision, the CIR Camera is the device you need to improve your monitoring solution.
Thanks to its high geometric resolution (4 megapixels) and frame rate (up to 60 fps), the CIR Camera guarantees recordings of outstanding accuracy and quality, making it ideal to monitor the position of hot blanks. Additionally, it is compact and easy to integrate, suiting both new and old production lines in need of an upgrade.
Combine the CIR Camera with our PH-Inspector for inline thermal monitoring to enrich the CQI-9 compliant temperature measurement, characteristic of our short wave IR sensors.
Are you ready to improve your monitoring results? Our experts are available to answer your inquiries.
CIR Camera:
- Resolution (H x V): 1,3MP = 1280x1024 px /4MP = 2048x2048
- Frame Rate: Up to 60 fps
- Size: 42mm x 29mm x 29mm (without lens mount or connectors)
- Spectral Range: 0,9 - 1,1 Mm
- Temperature measuring range: 460-650°C / 750°-1100°C
PH-Inspector:
- full CQI-9 Rev. 4 conformity of the IR temperature measurement
- recording independent of PLC cycle times
- support for tailored tempering
- monitoring of transfer zones, independent of sheet position
- support of IR line scanners, IR thermal imaging cameras and pyrometers
- can be combined with SelVision camera solutions (position control, destacking, etc)
- in cycle protocols for the connection with higher-level QS systems
- automated report feature
- open system for an individual extension
